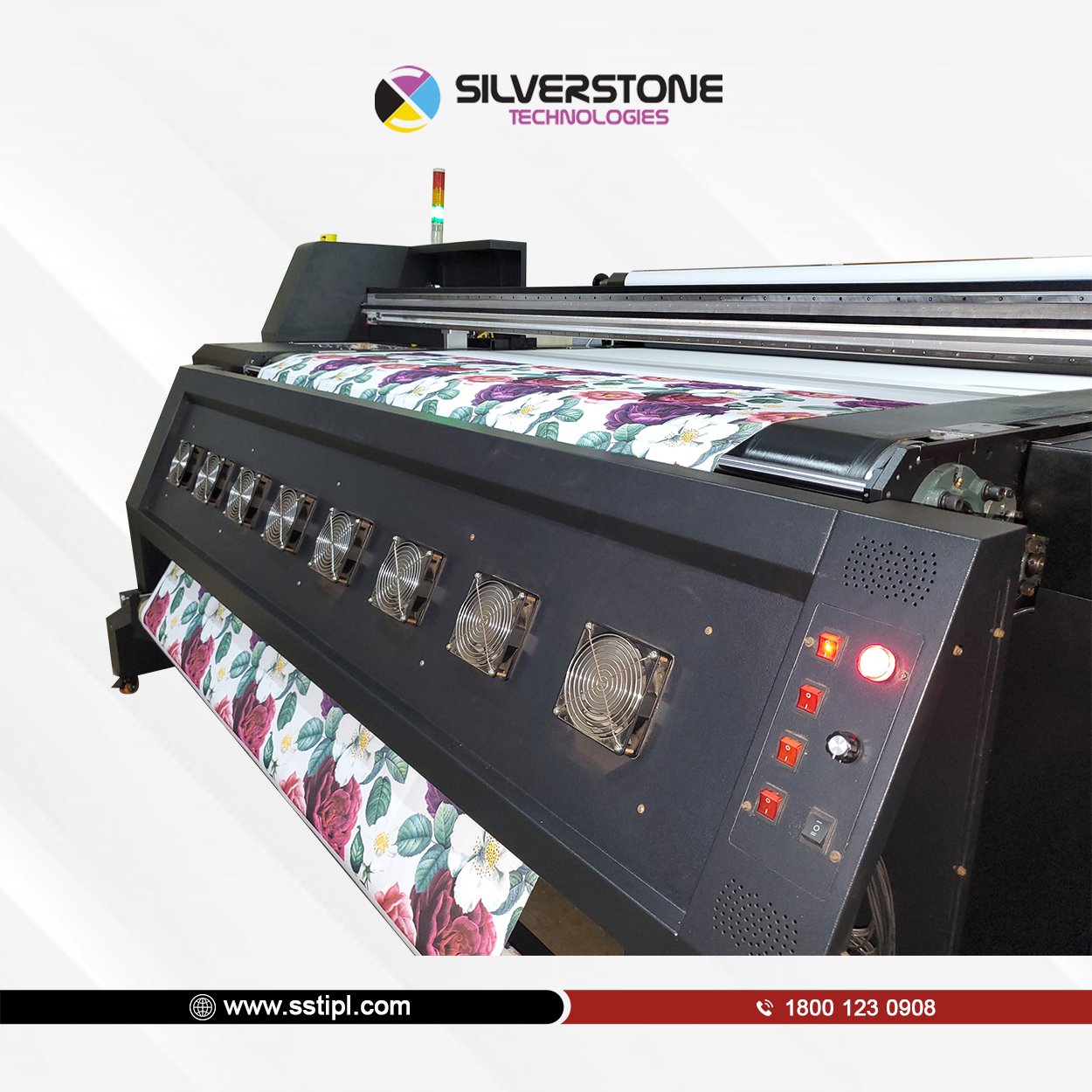

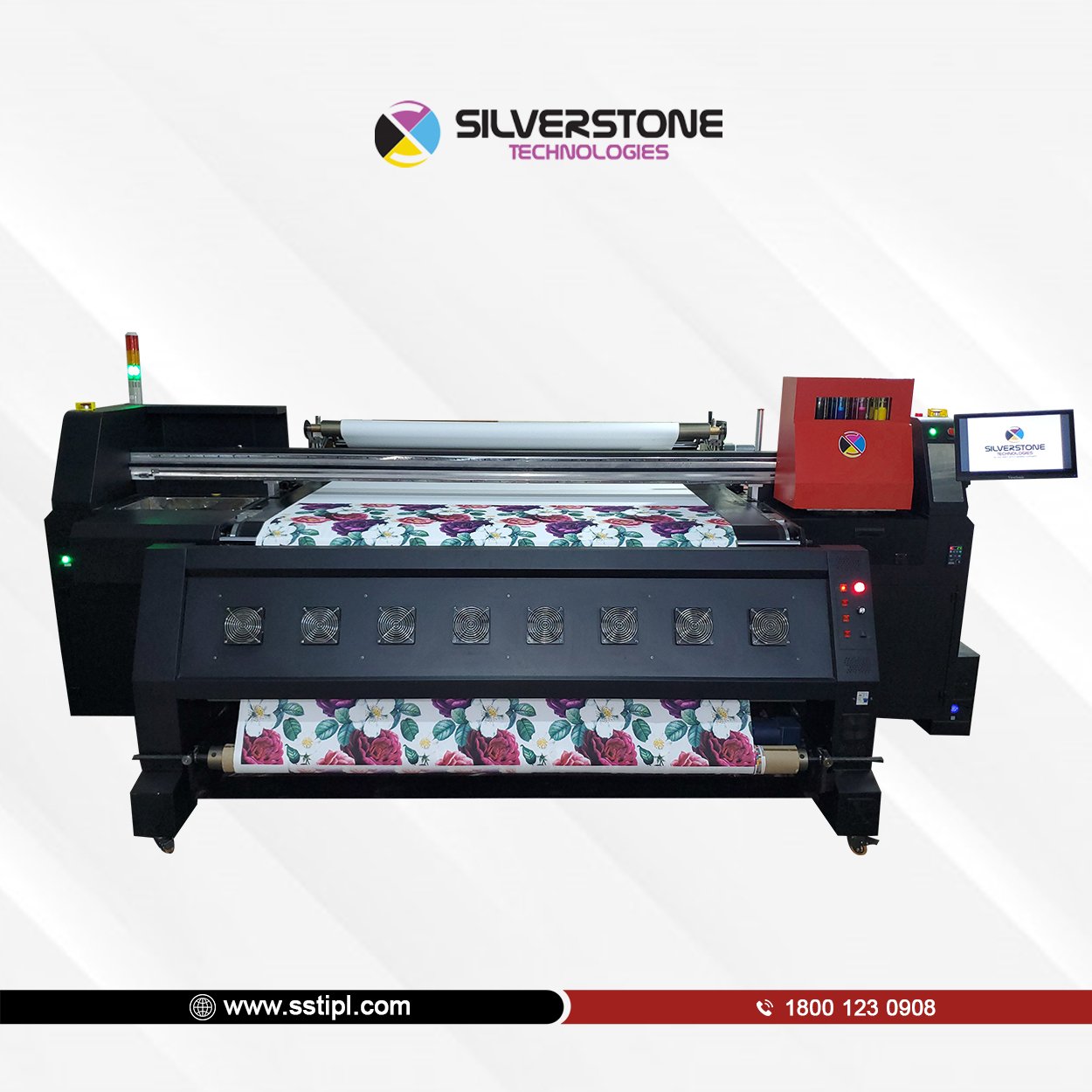

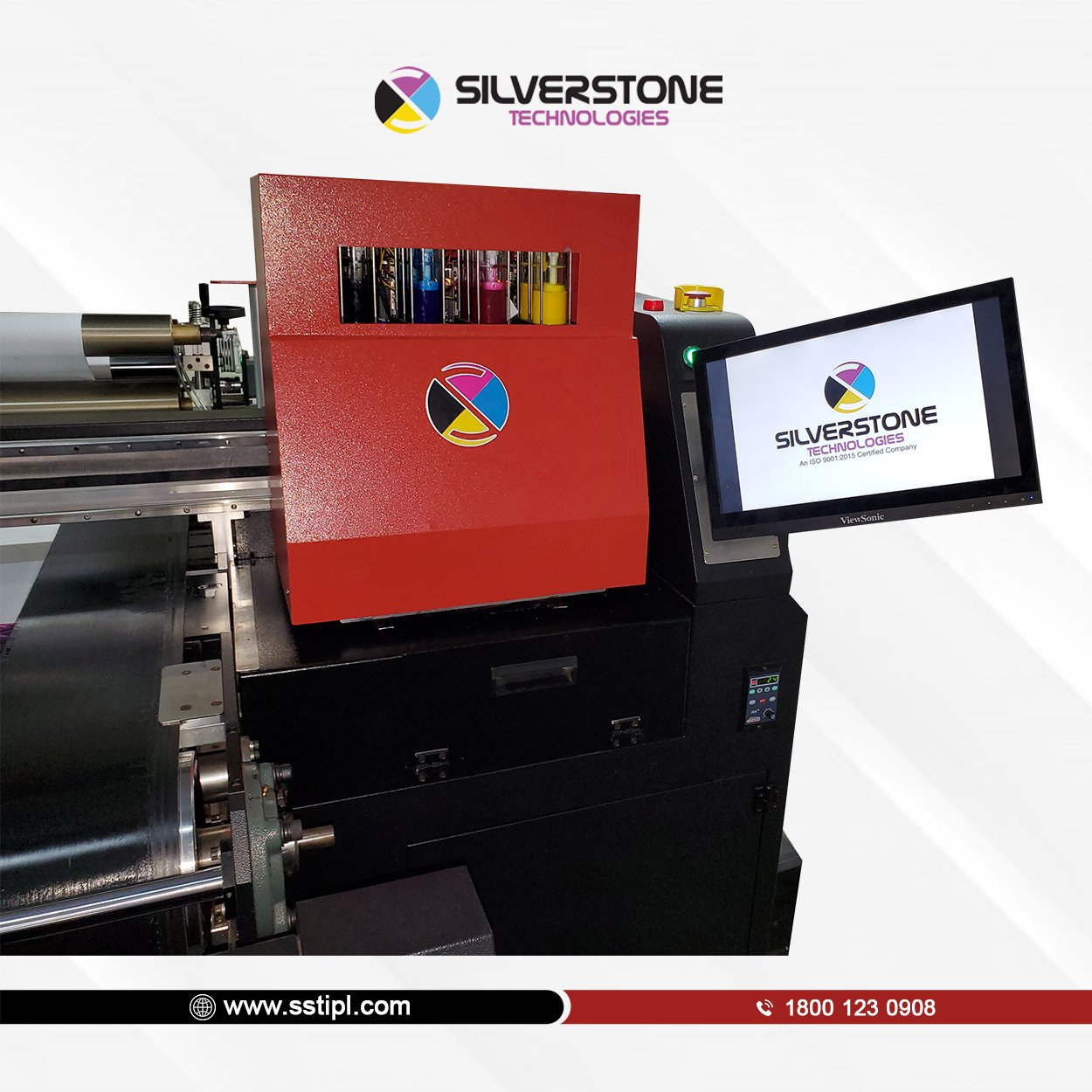

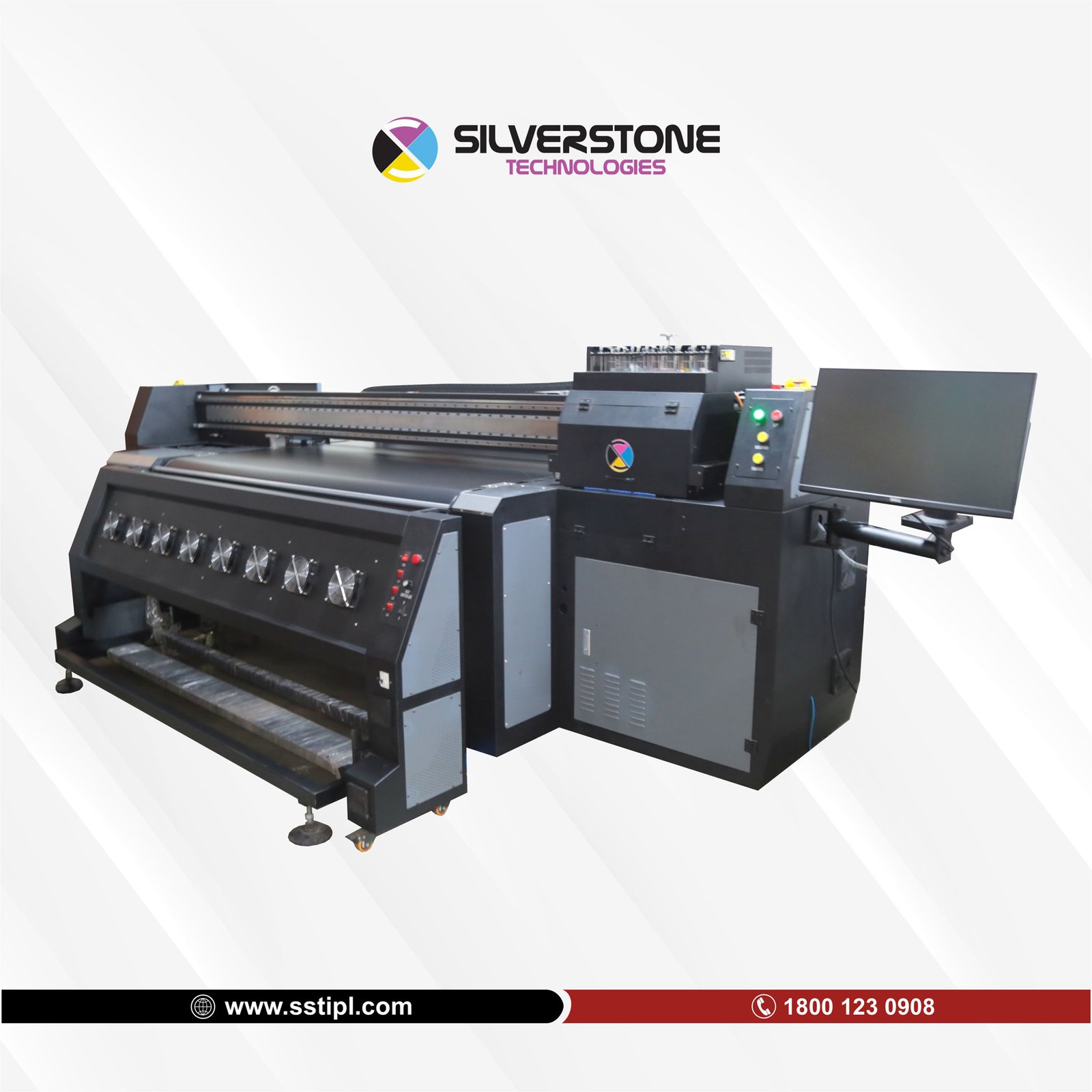

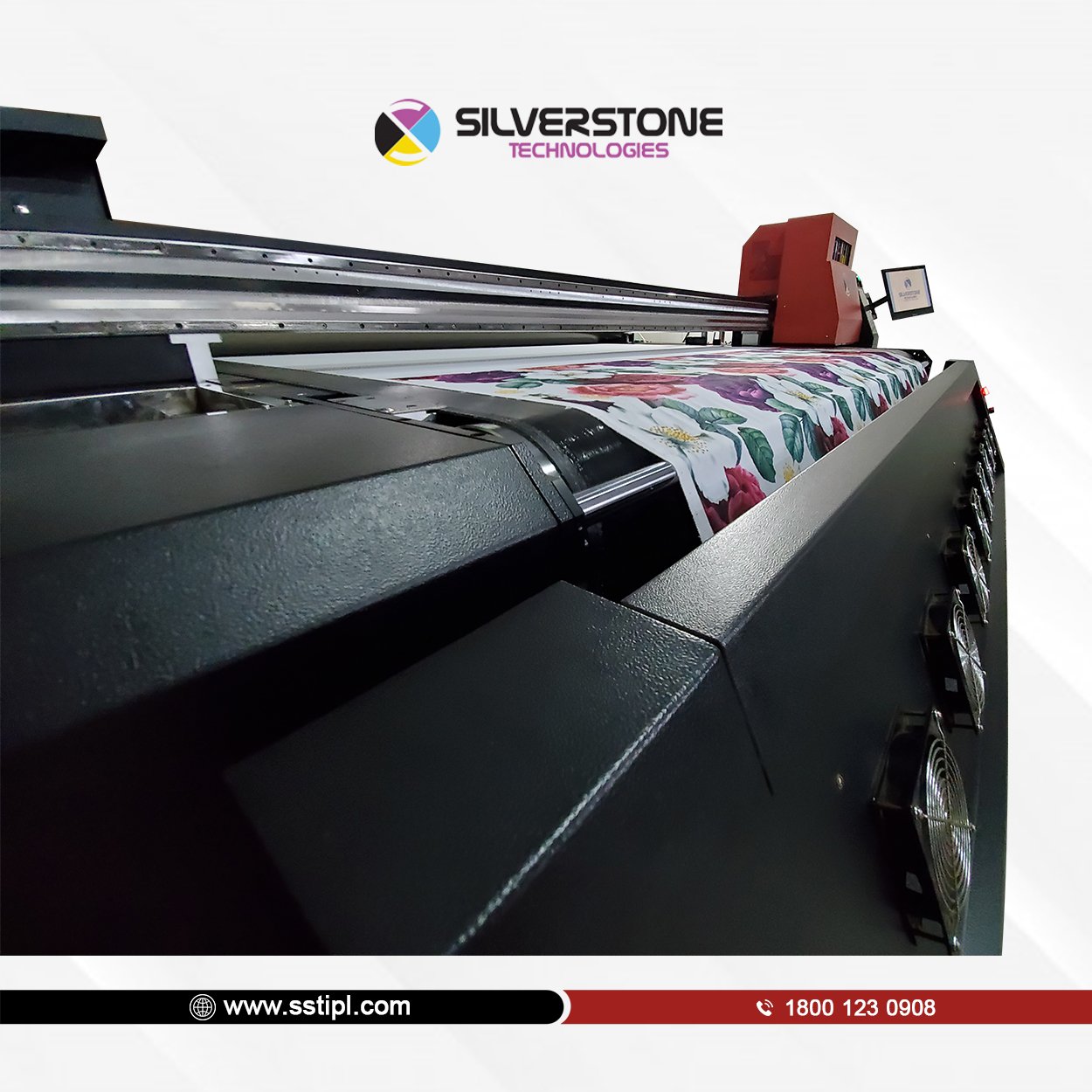

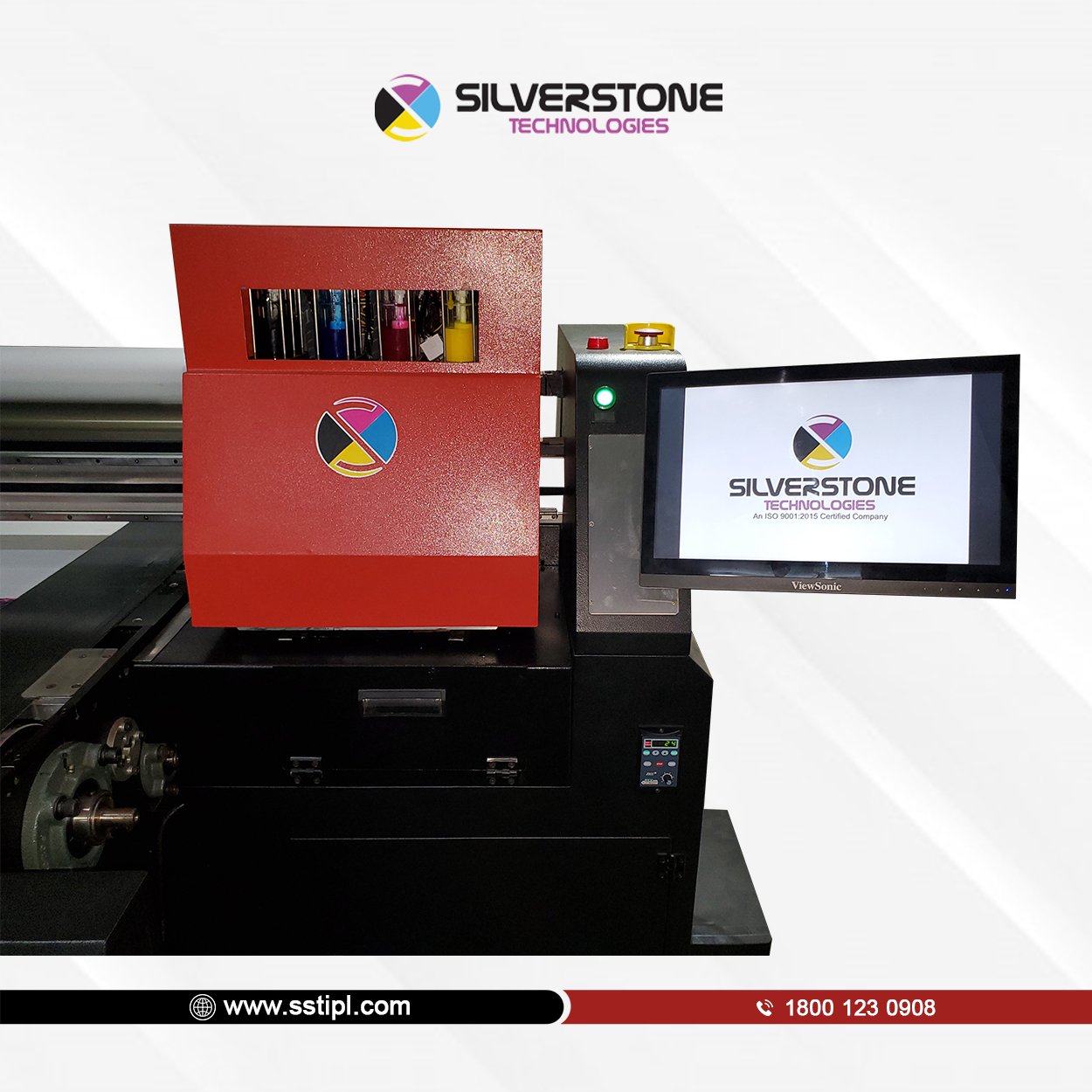

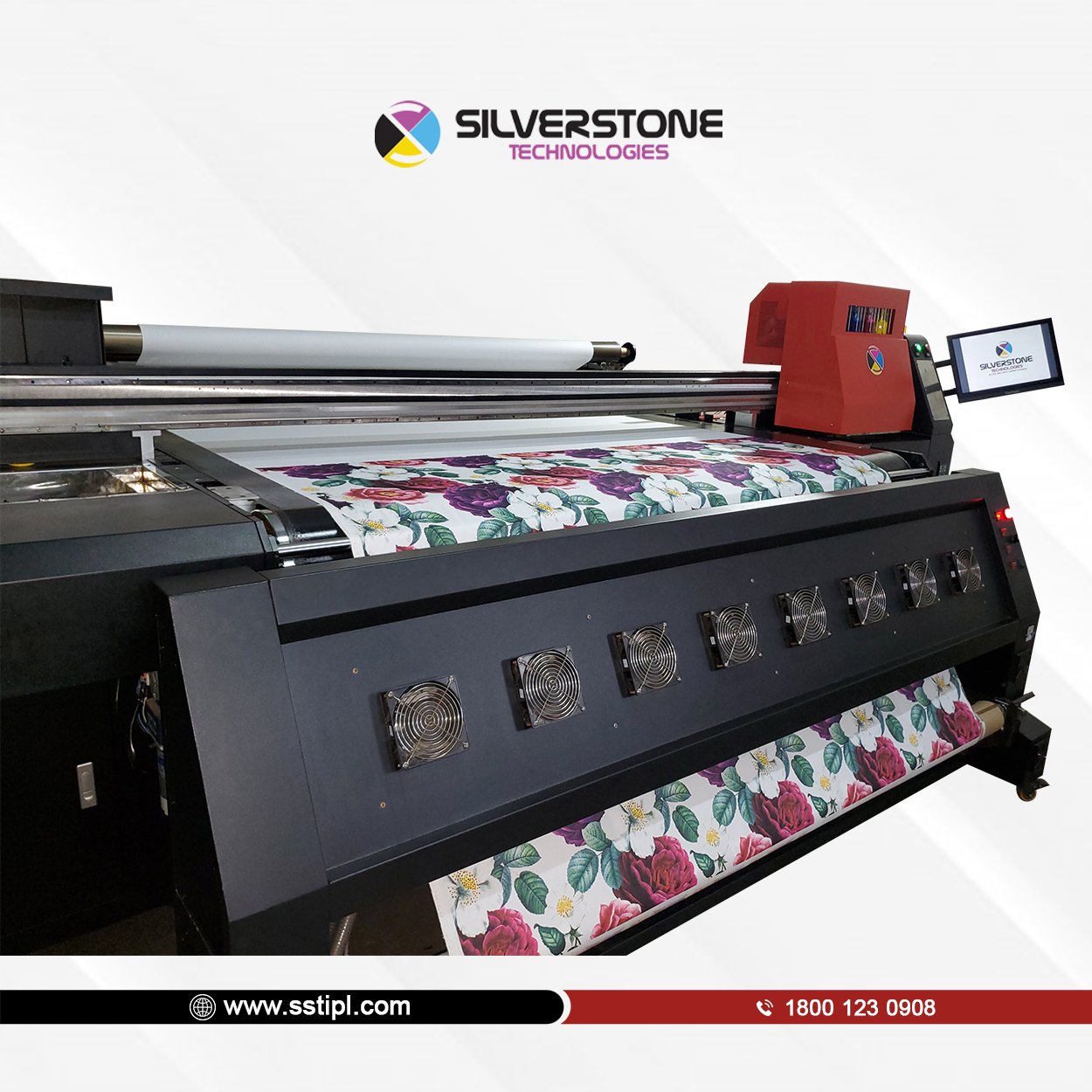

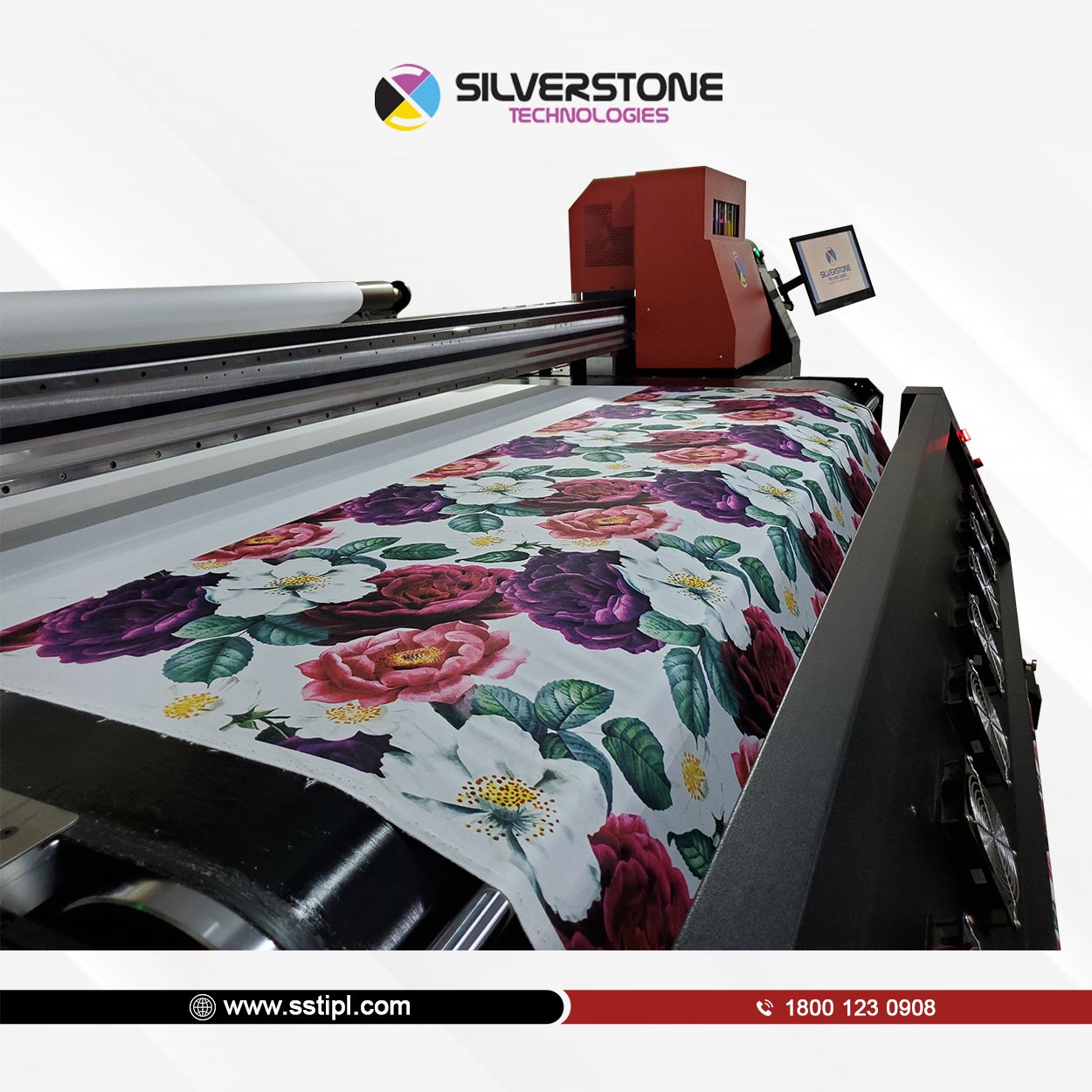

SS PHOTON Details
- Industrial Printhead for best quality printing and longer service life
- Printhead Capping and Wiping System
- European Control Electronics for Super Fine Printing
- Linear Motion System for Precise Positining while Printing
- Superior fabric feeding system
- Infrared Fabric and Belt Dryer
- Negative Pressure Ink Supply System
- In-line degassing and ink filteration system
- Supports NeoStampa RIP
|
Model Name |
SS Photon PG |
SS Photon RE |
|
No. Of Print Heads |
Upto 18 (Eighteen) |
|
|
Printhead Make |
Ricoh® Gen6/ Starfire® 1024 |
KM® 1024i / Ricoh® Gen6 |
|
Printhead Capping |
Yes |
|
|
Max Print Width |
1800 mm |
|
|
Max. Colour Supported |
8 Colour |
|
|
Ink Type |
Pigment |
Reactive |
|
Ink Recirculation |
Yes |
No |
|
Operating System |
Windows 10/11 |
|
|
Image file format |
T1FF/PDF/PS/EPS/AI |
|
|
Operational environment |
Temp.18-24c humidity 50-65% Non-Condensing |
|
|
Compressed air connection |
Yes Required |
|
|
Heating system |
Big power IR healing system with sensor |
|
|
Cleaning system |
Brush Roller + Sponge Roller + IR Belt Drying System |
|
|
Take up & feed in System |
Inflatable Bar and Wrinkle Prevention System |
|
|
Power |
7.5 kw; AC 220V; 50HZ |
|
