SS Proton Ultima Details

Introducing Silverstone's latest Patent Pending CTS Machine "SS Proton Ultima - World's first 2-in-1 Computer to Screen Engraver"

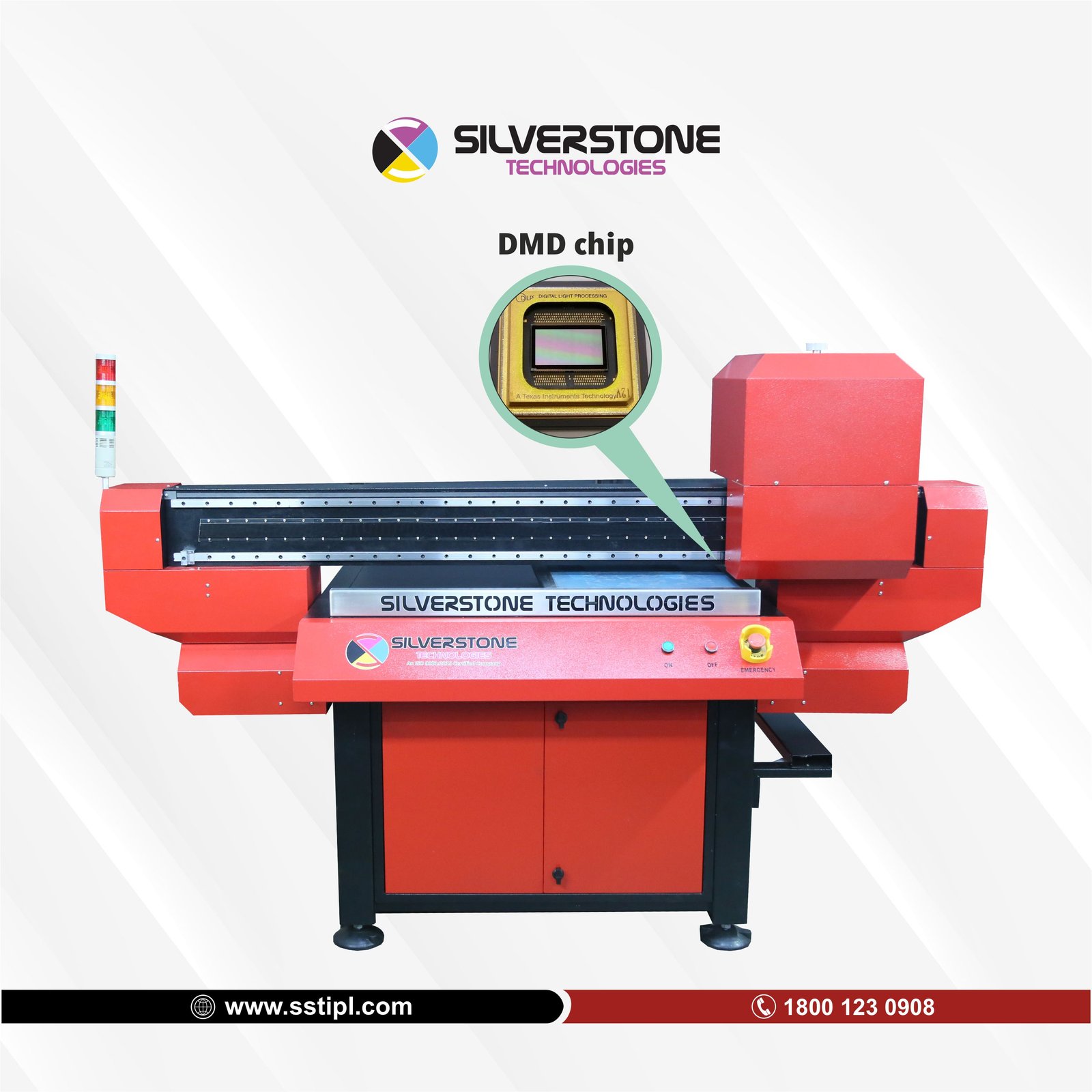

Based on Texas Instruments (USA) patented DLP Technology which consists of Digital Micromirror Device (DMD). The DMD chip used in SS Proton Ultima is a rectangular array of 2 million individually controlled, highly reflective aluminum micromirrors. We have used our 15 years of expertise in the Screen Engraver industry to create the perfect hardware and software combination which processes the image and assigns each pixel of the image to an individual micro mirror and synchronizes the scrolling of the image on DMD with the machine's motion to achieve best in class screen outputs. The DLP system does not involve ink or wax, it exposes the screen by electronically controlling the projection of the design by controlling the state of each individual micro mirror.

With our innovative 2-in-1 functionality, machine can be seamlessly switched between flatbed exposing and rotary exposing modes, eliminatng the need for two seperate machines. This ingenious functionality allows for substantial cost savings, reduced initial capital investment, efficient resource and labour management and optimised space utilisation.

SS Proton Ultima vs Inkjet Engravers

• SS Proton Ultima totally eliminates the use of expensive consumables like ink, wax, printheads, films etc. which results in significant cost savings. The Screen produced by SS Proton Ultima are of much higher quality than any inkjet machine.
• Screens are prepared with fewer production steps which results in time savings.
• Eco-friendly since no inks or wax is being used thereby reducing water pollution and saving over 100,000 liters of water from being polluted during the machine's lifetime

SS Proton Ultima vs Diode Based Blueray Engraver

• SS Proton Ultima features European Control Electronics and advance DMD - Digital Micromirror Device System with 20 Micron pixel size to expose the screen. Blueray Engraver mostly use Chinese Control Electronics and multiple individual diodes to expose the screen. Due to the core technological difference between both, the screens engraved by SS Proton Ultima are of much higher quality
• SS Proton Ultima has a higher production capacity when compared to blueray engravers as it covers larger surface area at once while exposing.
• Single LED light source used in SS Proton Ultima has a longer service life when compared to multiple individual diodes used in Blueray Engraver
• Single LED Light Source gives much longer, reliable and consistent light supply which solves one of the biggest drawback of diodes based blueray machines, where different diodes may have different light intensities depending on their life, and if any diode gets weak it can create a line effect on screen similar to a inkjets Printheads missing nozzles
• SS Proton Ultima uses 365nm Wavelength UV LED which is much better when compared to Blueray Engravers 405nm UV.
